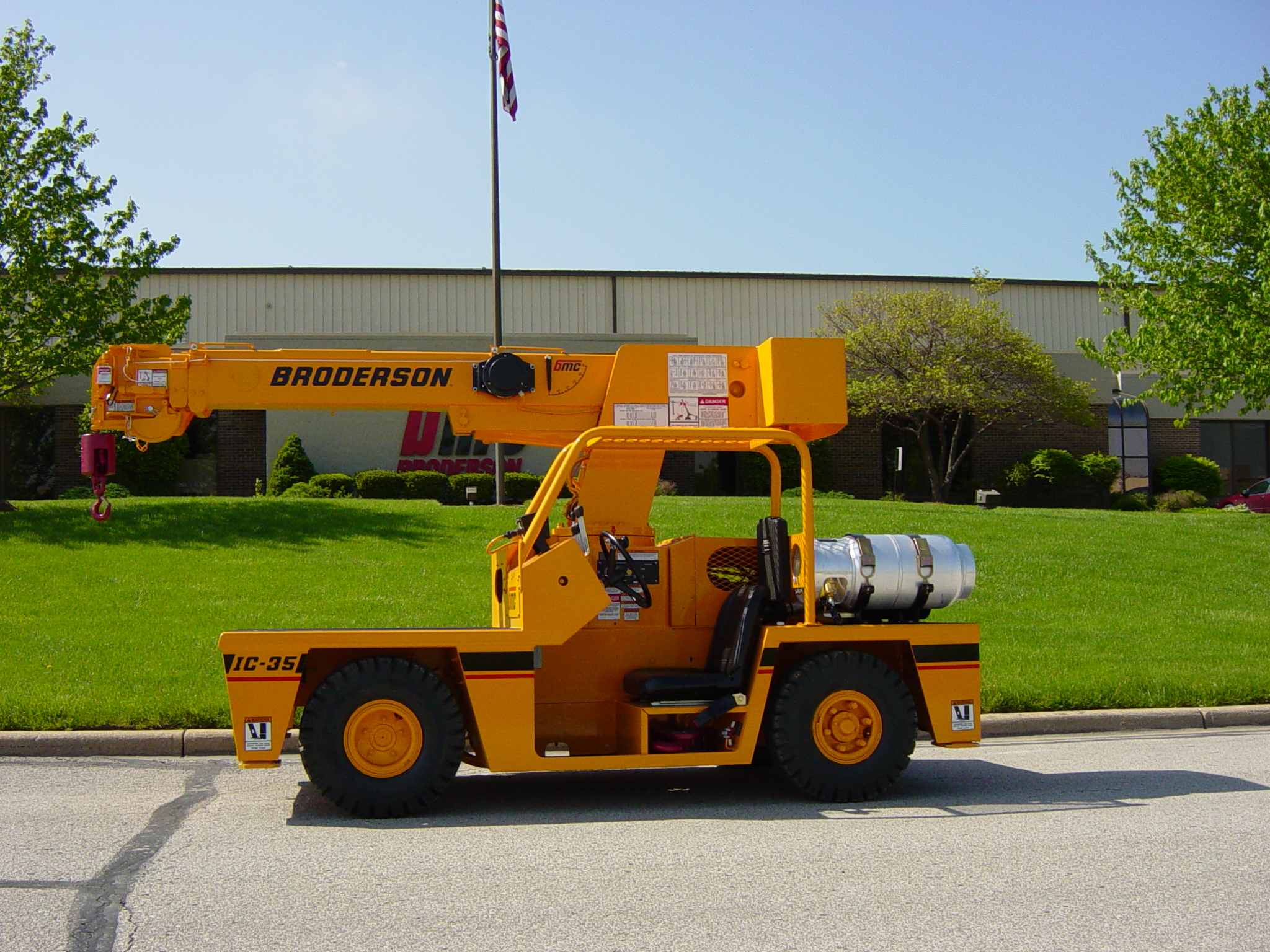

IC 35 Industrial Carry Deck Crane
Renowned for its legendary reliability, return on investment and industry-leading performance, the IC 35 is a crane owner and user favorite. Operator fatigue is minimized with easy to operate direct mechanical over hydraulic controls that deliver smooth precise operation. The IC 35’s tight turning radius enhances maneuverability and allows better positioning close to the load in space-constrained work sites.
IC-35
8,000 lbs. (4 tons)
| Height | 6' 6" |
|---|---|
|
Width |
5′ 0″ |
|
Main Boom |
19′ |
|
Max Tip Height |
33′ 4″(with Boom Extension) |
|
Boom Rotation |
360° Continuous |
|
Gross Vehicle Weight |
7,860 lbs. (3.565 kg) |
- Compact Profile
- Factory Equipped Telematics
- Exclusive 3-Position Outrigger System
- Reliable, Durable, Easy to Use
IC 35 Industrial Carry Deck Crane
Renowned for its legendary reliability, return on investment and industry-leading performance, the IC 35 is a crane owner and user favorite. Operator fatigue is minimized with easy to operate direct mechanical over hydraulic controls that deliver smooth precise operation. The IC 35’s tight turning radius enhances maneuverability and allows better positioning close to the load in space-constrained work sites.
IC-35
8,000 lbs. (4 tons)
| Height | 6' 6" |
|---|---|
|
Width |
5′ 0″ |
|
Main Boom |
19′ |
|
Max Tip Height |
33′ 4″(with Boom Extension) |
|
Boom Rotation |
360° Continuous |
|
Gross Vehicle Weight |
7,860 lbs. (3.565 kg) |
- Compact Profile
- Factory Equipped Telematics
- Exclusive 3-Position Outrigger System
- Reliable, Durable, Easy to Use
Product Information
Standard Features
| Boom Sections | 3 |
| Outriggers | Independently Controlled | Hydraulic |
| Steering | Rear Wheel |
| Fuel | Diesel | Dual Fuel |
| Engine | Kubota EPA Tier-4 Diesel | Kubota Dual Fuel |
| Rated Capacity Limiter | Yes |
| Telematics | Yes |
Additional Features
Self-Loading Carry Deck provides practical load-carrying ability.
Four Independently Controlled Outriggers (with holding values).
3-Section Boom with continuous 360 degree swing rotation turret. A rugged worm drive gear box results in greater reliability.
Hoisting with a hydraulically-powered turret-mounted planetary gear system provides all the low speed power to lift heavy loads, as well as high speed performance for faster cycle times when lifting lighter loads.
Rated Capacity Limiter warns the operator of impending overload with audible and visual signals, and stopping boom functions in the event of overloads.
Drum Rotation Indicator provides better awareness of boom rotation and position.
EPA Tier-4 Fuel Engine delivers efficient performance, plus all of the low-end torque you need.
Simple, Reliable Direct Mechanical over Hydraulic Controls enable precision load pick and placement.
Easy Access to engine compartment and hydraulic equipment components simplifies maintenance and repair.
Narrower and Lower Profile Design enables better access to tight work spaces as well as simplifies transportation.
